  • 24VAC to DC12V 5A 60W Step-down Power Converter Regulator AC17-40V to DC12V Voltage Transformer Waterproof for Cars

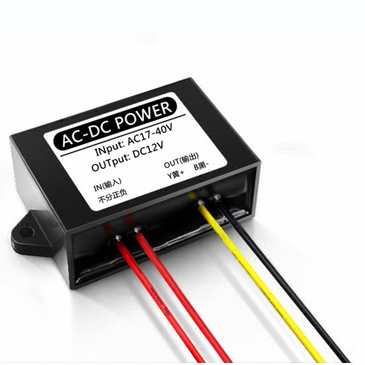

24VAC to DC12V 5A 60W Step-down Power Converter Regulator AC17-40V to DC12V Voltage Transformer Waterproof for Cars



Input range

Output voltage

Ouput current

Output power

Efficiency

Size

Warranty

17V-40VAC

12VDC

5A

0-60W

94%

46*32*18mm

2 years



· Input Voltage: 24VAC nominal, Input range: 17V to 40V ; Output Voltage: DC 12V 5A 60W.

· This converter can not be connected to solar panels or wind turbines directly. This converter can not charge the battery.

· Adopt Synchronous Rectification Technology to improve conversion efficiency, Maximum Efficiency:≥95%; Ripple Wave: 50Mv; Starting delay time:≤2S.

· Assembled with smart chip, features Over-current /Over-load /Low-load /Short-circuit /Over-heat intelligent protection.

· These voltage converters are excellent power transformers, can work safely and reliable in -40°C~80°C range. And all converters are offered 3 years replacement.

· Compact aluminium shell with epoxy potting, 100% waterproof, anti-dust, anti-shock protection and better heat dissipation.
