  • DC to DC Waterproof Converter 48V to 24V 30A Step Down Module Power Converter CE Aluminum Transfomer

DC to DC Waterproof Converter 48V to 24V 30A Step Down Module Power Converter CE Aluminum Transfomer



Input range

Output voltage

Ouput current

Output power

Efficiency

Size

Warranty

30V-60V

24V

30A

0-720W

94%

100*80*40mm

2 years



· Input Voltage: 36V/48V nominal, Input range: 30V to 60V ; Output Voltage: DC 24V 30A 720W.

· This converter can not be connected to solar panels or wind turbines directly. This converter can not charge the battery.

· Adopt Synchronous Rectification Technology to improve conversion efficiency, Maximum Efficiency:≥95%; Ripple Wave: 50Mv; Starting delay time:≤2S.

· Assembled with smart chip, features Over-current /Over-load /Low-load /Short-circuit /Over-heat intelligent protection.

· These voltage converters are excellent power transformers, can work safely and reliable in -40°C~80°C range. And all converters are offered 2 years replacement.

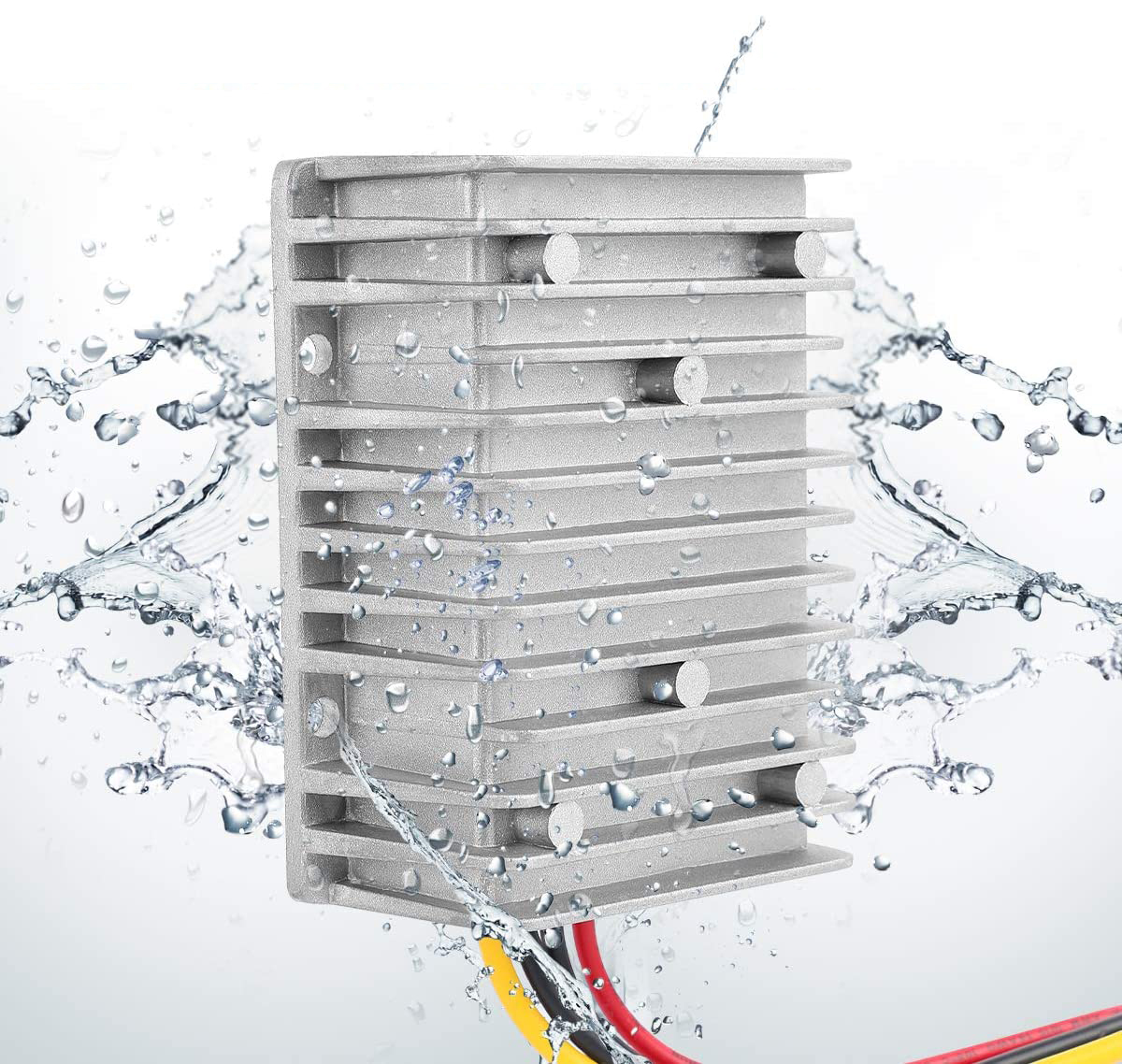

· Compact aluminium shell with epoxy potting, 100% waterproof, anti-dust, anti-shock protection and better heat dissipation.
